Perfect Balance of Depth and Precision
The detector is distinguished by its ability to capture precise targets in shallow and medium layers, combining depth, stability, and ease of use in a balanced engineering design suitable for all experience levels.
It is not just an ordinary device, but an advanced detection tool that provides the user with accurate results in every exploration operation.
Technical Specifications
| Feature | Details |
| Operating Principle | Signal analysis with audio and visual output |
| Processor | High-Performance ARM Cortex M7 |
| Display | 5-inch Color TFT, WVGA 800×480 resolution |
| Battery | Built-in Lithium-Ion 12.6V / 3500mAh |
| Battery Life | Up to 6 hours of continuous use |
| Charger | Type-C – PD 30W |
| Sound Detection | Interactive frequency sound |
| Languages | 7 languages (English, French, German, Spanish, Italian, Russian, Arabic) |
| Device Weight | 6 kg (packaged), 2 kg (assembled with coil) |
| Dimensions | 86cm x 23cm x 45cm (packaged), 13.5cm x 39cm x 91cm (assembled) |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -10°C to 80°C |
More Than a Gold Detector…
It’s Pure Field Accuracy.

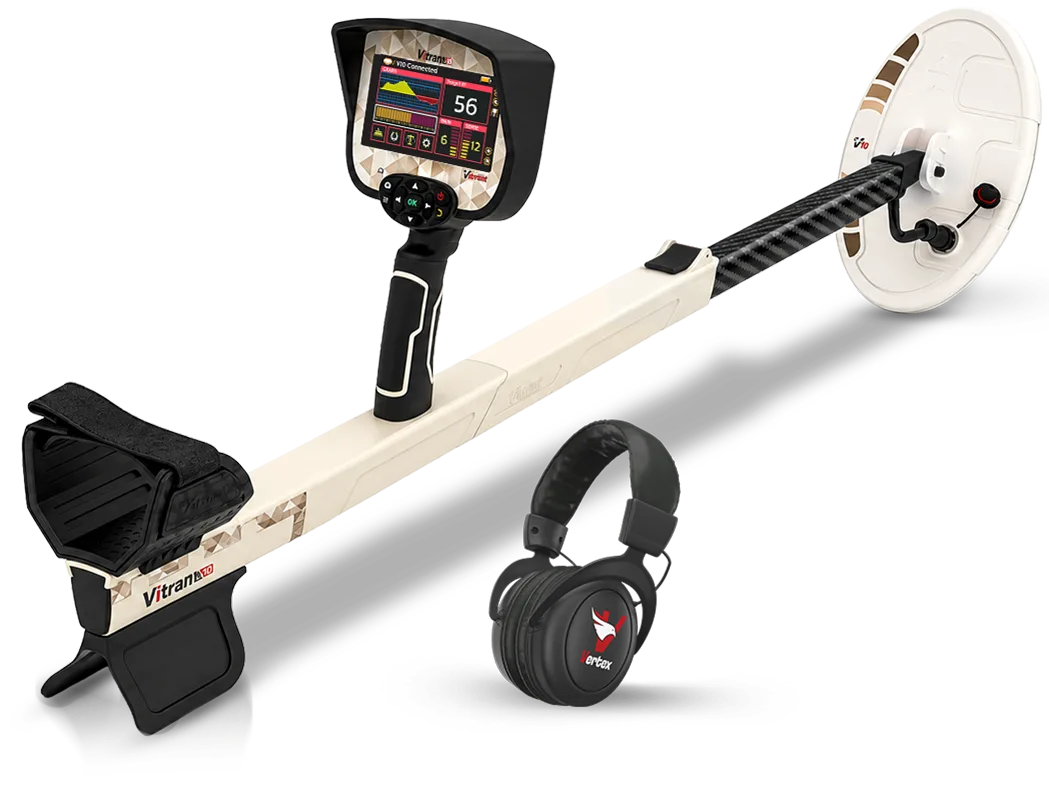

VITRAN VX10 is designed to redefine gold detection performance.
It combines depth, speed, and precision in one advanced system — built to identify even the smallest natural gold nuggets in the toughest terrains.
It simplifies exploration. | Eliminates guesswork. | Reduces random digging. | Delivers reliable results with unmatched stability.
Target Users & Operating Environments
Target Users
Specifically designed for prospectors searching for raw gold and gold nuggets in:
- Open fields and mountainous areas.
- Dry sandy deserts.
- Agricultural lands and medium clay soils.
It is suitable for users seeking professional, reliable performance that is also easy to operate.
Operational Environments
The detector has been tested under various field conditions and has proven to deliver consistent and reliable performance even in the most challenging soil types.
The detector is designed for real-world fieldwork — not for ideal laboratory conditions.
The Core Technology (SFX Technology)
SFX Technology Supported by Advanced Search Coils – Sensitivity + Depth + Stability
This technology does not rely on a single fixed coil but gives the user the ability to select the most suitable coil according to the target type, required depth, and soil nature.
High Sensitivity for Small Targets
The VITRAN VX10 relies on SFX Technology — an advanced frequency-signal processing system that enables the detector to analyze metal responses with high precision and convert them into visual and audio digital data.
This technology provides the detector with high sensitivity to small targets and excellent stability in mineralized soils, ensuring the best balance between depth, discrimination, and field accuracy.
5 Smart Detection Systems
The Most Powerful Integrated Detection System in one Detector
Each system is designed for a specialized function, giving the user complete control from the moment of signal detection to the precise final localization of the target.
SFX Target ID System
An advanced digital discrimination system that displays numeric identifiers (IDs) for each type of metal.
- Classification of targets as Precious / Non-Precious
- Easy-to-read interactive indicators
Helps the user understand the type of target before digging.
Graph Mode System
Graphical representation of the signal received from the target.
- Understanding signal strength
- Determining target type (Precious / Non-Precious)
- Analyzing response shape
Ideal for professional users who rely on signal reading.
Pinpoint Mode
Iron Reject Mode
Deep Mode

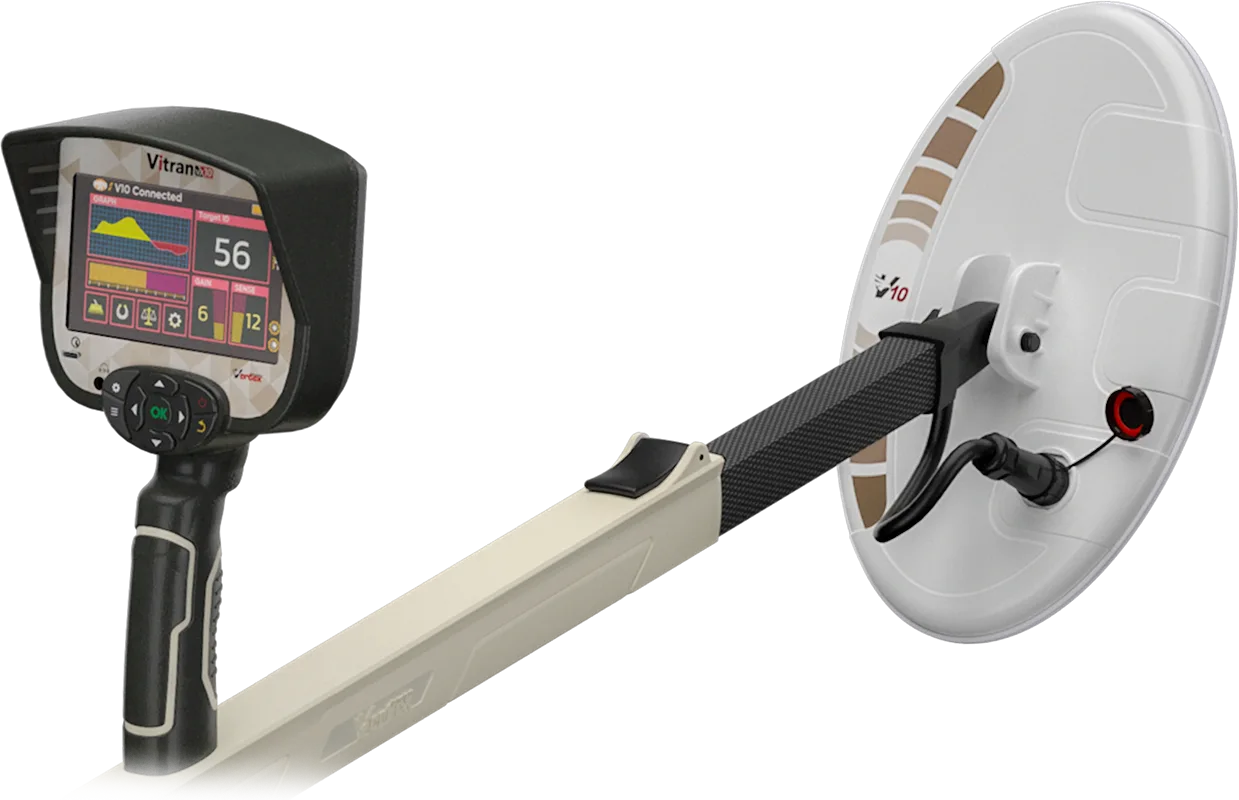

Search Coils — Power, Depth, Precision

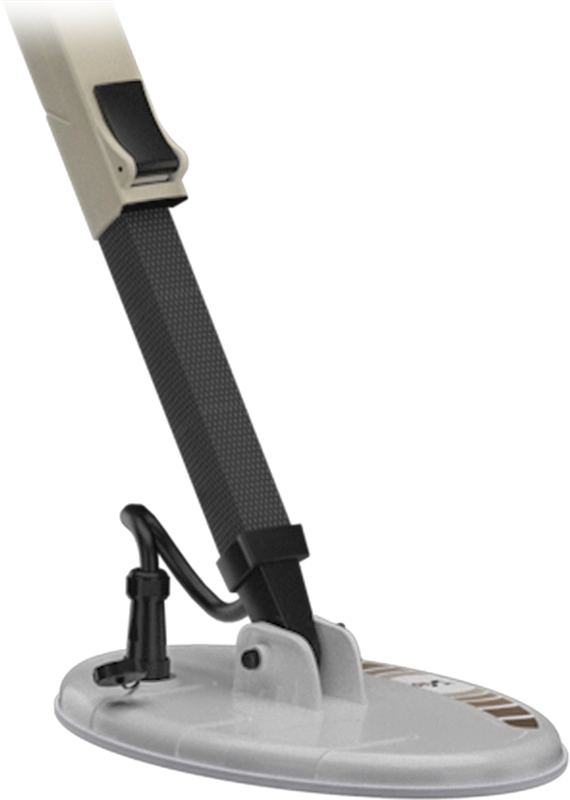

V10 & V25 Search Coils
The VITRAN VX10 comes equipped with the primary V10 search coil (8×12 inches), a high-sensitivity coil designed to detect fine gold nuggets and small targets within shallow and medium depths.
It can also be equipped with the optional V25 coil (12×12 inches) to reach greater depths and detect medium and large targets with high accuracy and stability across different soil types.
Auto Ground Calibration System
The detector operates with a fully automatic ground calibration system (Auto Ground Balance) that adapts to soil characteristics immediately upon startup, without any manual intervention, ensuring stable performance and high accuracy in mineralized or salty environments.
Refined Engineering and Professional Interface

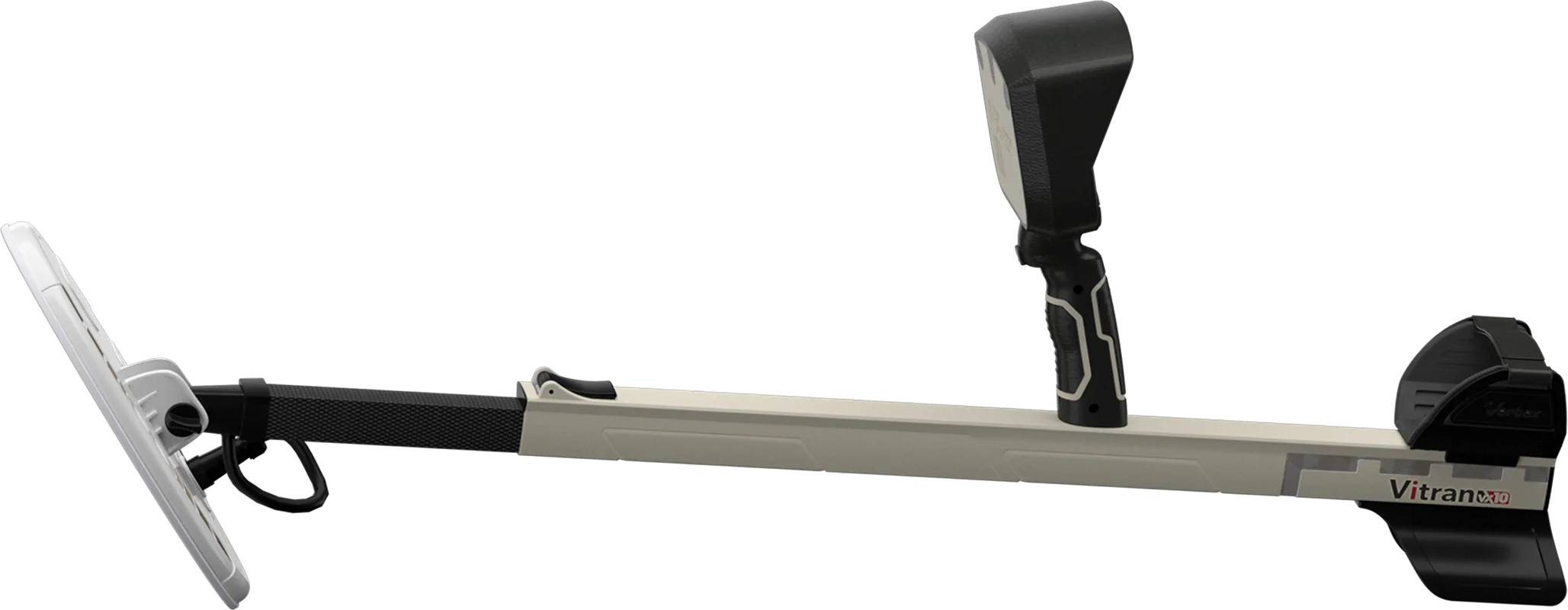

Design & Build
A robust engineering design that combines durability and light weight for comfortable long-term use:
- Reinforced body resistant to shocks and dust.
- Foldable shaft that is easy to assemble and carry.
- Comfortable, non-slip grip.
- High-resolution color display that shows data clearly under any lighting conditions.

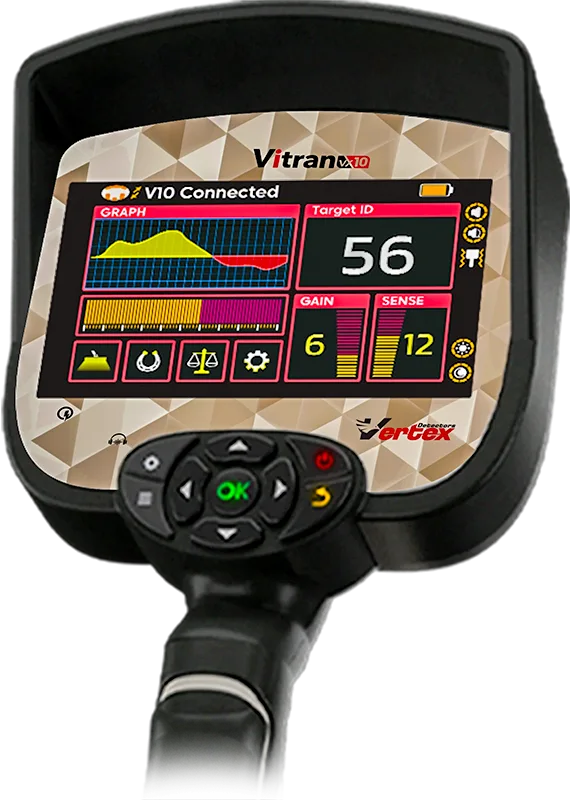

User Interface
The interface has been developed to deliver professional performance with ease of control.
- 5-inch high-resolution TFT color display (480×800 WVGA)
- Clear presentation of data, signals, and graphs
- Smart and responsive interface
- Logically organized menus
- Intuitive icons for quick access to systems
- Quick settings for each search mode without complexity
- Multi-language support: (EN, FR, DE, ES, IT, RU, AR)
Simplicity for advanced users… and professional control for experts
Proven Field Performance
Field Performance
The VITRAN VX10 delivers a real, fast-responsive field performance across various soil types:
- An ideal balance between sensitivity and depth.
- Excellent stability in sandy and clay soils.
- High speed in capturing small targets in complex environments.
- Instant and accurate on-screen results during field movement.
Signals & Alerts
The detector relies on an integrated system of audio alerts and visual indicators that appear in real time on the screen:
- A tonal gradient that distinguishes valuable targets from non-valuable ones.
- Instant visual display of signal strength and target location.
- Ability to operate in silent mode using visual indicators only.
An intelligent system that provides the user with accuracy and confidence in every search operation.
Package Contents
in One Complete Case
Vitran Pack – The Ultimate Solution for Protection and Storage.
Armrest – The ultimate support for stability and comfort.
V10 Coil – Precision meets speed in every swing.
AcuTone Headphones – Crystal-Clear Sound and Precision
Vitroit Charger – Type-C, 30W PD/QC Fast Charging
